NH310 Portable Colorimeter

Perfect Partner for Color Measurement NH310

NH 310 series portable computer colorimeter adopts the core multi-channel color sensor of international imported brand, more stable lC platform and efficient and accurate algorithm to provide users with accurate and fast color management and application.


Key Highlights

  • 8°/ d optical geometry

  • Automatic black and white calibration function when power on;

  • CIELab, CIEXYZ, CIERGB, CIEL*u*v*, CIEL*C*h Color Space

  • Φ4mm and Φ8mm aperture;

  • 2.8-inch TFT screen for easy operation

  • Reliable repeatability (ΔEab ≤0.06) and Inter-instrument agreement (ΔEab ≤0.4)

  • Large storage capacity,  Apprx. 20,000 data;

  • PC-side software realizes more function expansion

This NH310 Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

Product Comparison

High-End Brand of Domestic Colorimeter

NH310 is a mainstream brand colorimeter introduced by 3nh which has synthesized the advantages of ten more traditional imported colorimetersand has experienced ten thousands tests and applied many innovative technologies. Accurate, Stable, Exquisite and Affordable!

The Preferred Solution for Color Quality Control Management

NH310 high-quality portable colorimeter has adopted multi-channel color sensors of international brands, more stable IC platform as well as efficient and accurate algorithms to provide users with accurate and fast color management and application. NH310 is also designed with ergonomics and humanized operation and it has applied for a number of patents. NH310 is a multifunctional colorimeter with high quality and competitive price. 3nh insists on independent research whose technology innovation is unique in color management field. NH310 is the most convenient colorimeter for users.

NH310 High-Quality Portable Colorimeter

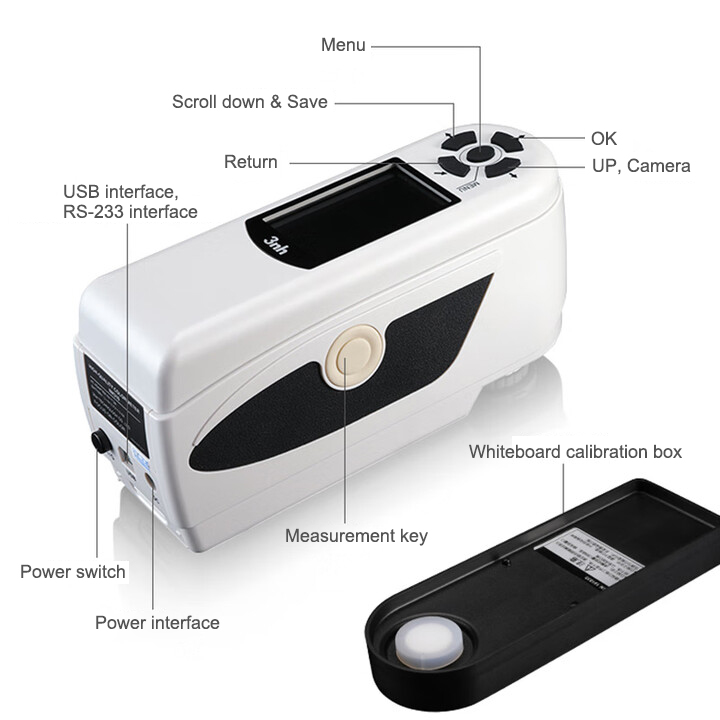

Leading Humanity Design and Convenient Operation


One-touch access to measurement interface
Structure design in line with ergonomics
East-to-use operating interface




Stable Measurement Performance


The repeatability △E is 0.08.
Portable structure design which is more conductive to keeping the instrument stable when using.




Convenient and Fast Locating

Illumination locating is a fast, simple and convenient locating which created by 3nh




PC Software—Realize More Function Expansion

3nh has the intellectual property of PC software. The corresponding software serial number and password protection are configured in 3nh colorimeter.
Be able to perform color difference analysis, color difference cumulative analysis, chromaticity index, color sample database management, simulating object color, etc.




Advanced Power Management Design

3nh is the first enterprise using high capacity Li-ion battery in colorimeter.
3nh Li-ion battery can be repeatedly charged which will save cost. Meanwhile, it can measure more than 3000 times on one charge to ensure the stability of long time measurement.


National Patent and Innovative Technology

No.1 Camera locating and illumination location (NH310 has new functions of double locating.)

No. 2 Built-in white plate; Automatic calibration at startup (for NH310)

No. 3 Extended aperture (optional), available for measuring concave surface


NH Series Colorimeter Specifications


NH300 NH310
Illuminating/Viewing Geometry 8/d 8/d
Measuring Aperture Φ8mm Φ8mm/Φ4mm
Detector Silicon photoelectric diode Silicon photoelectric diode
Color Space CIEL*a*b*C*h* CIEL*a*b* CIEL*a*b*C*h* CIEL*a*b* CIEXYZ CIERGB CIEL*u*v* CIEL*C*h Yellowness & Whiteness Color Fastness
Color Difference Formula △E*ab △L*a*b △E*C*h △E*ab △L*a*b* △E*C*h* △ECIE94 △Ehunter
Light Source D65 D65 D50 A
Light Source Device LED blue light excitation LED blue light excitation
Errors Between Each Equipment ≤0.40ΔE*ab ≤0.40ΔE*ab
Storage 100pcs standards 20000pcs samples 100pcs standards 20000pcs samples
Repeatability Standard deviation within ΔE*ab 0.07 Average of 30 measurements of standard white plate

Standard deviation within ΔE*ab 0.06

Average of 30 measurements of standard white plate
Weight 500g 500g
Dimension 205×70×100 mm 205×70×100 mm
Power source Rechargeable lithium-ion battery 3.7V@3200mAh Rechargeable lithium-ion battery 3.7V@3200mAh
Lamp Life 5 years, more than 1.6 million measurements 5 years, more than 1.6 million measurements
Charging Time 2 hours (first time 8 hours--100% electricity) 2 hours (first time 8 hours--100% electricity)
Measuring Times Before Recharging more than 3000 times more than 3000 times
Operating Temperature/Humidity Range -10~40℃, relative humidity 0~85% with no condensation -10~40℃, relative humidity 0~85% with no condensation
Data Interface USB USB
Extended Aperture (optional) - Φ8mm extended aperture, available for measuring concave surface
Printer (optional) Miniature thermal printer Miniature thermal printer




12 Quality Inspection Processes

With 12 rigorous quality inspection processes in place, we ensure a high yield rate of up to 98% for batch processed precision parts.

DFM Analysis
DFM Analysis
Dimensional Tolerance
Dimensional Tolerance
Material Testing
Material Testing
CNC Machining
CNC Machining
FQC Detection
FQC Detection
SPC / CPK
SPC / CPK
Problem Found
Problem Found
Problem Solving
Problem Solving
OQC Detection
OQC Detection
Surface Treatment
Surface Treatment
Full Inspection
Full Inspection
Package
Package

Our Valued Clients

FAQs About Colorimeter

Yes. We can supply OEM and make customized design for any specific application. Our MOQ for OEM and ODM service is 5 pcs for one model. We can not only offer standard machines, but also customized machines. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.

High Measurement Accuracy and Stability: Low ΔE fluctuation (e.g., NH300: ΔE < 0.07; NR10QC: ΔE ≤ 0.03 short-term repeatability); Reliable sensors (CMOS dual-beam/silicon photodiode) and long-lasting light sources (1.6M–3M measurements over 5 years).

User-friendly Design and Convenient Operation: Intuitive interfaces (e.g., NH300’s “fool-proof” operation), auto-calibration, and ergonomic grips for extended use; Versatile positioning (light/cross alignment) for precise measurements.

Robust Design: Our colorimter instruments are designed to withstand rigorous use, providing long-term reliability. Rechargeable lithium batteries enable 5,000–6,000 measurements per charge (e.g., NH300/TS7030), ensuring cost-effective durability.

PC Software Support for Functionality Expansion: PC software (e.g., CQCS3) supports color difference analysis, chromaticity indexing, and sample library management.

Global customer support: Our global presence across regions ensures you get the service and maintenance support you need to keep your instrument at peak performance.

Multiple Measurement Apertures and Application Scenarios: Multiple measurement apertures, different models have different measurement apertures and some models offer multiple optional apertures. Applicable to plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics, automotive, food, medicine and other industries for color quality control and color difference detection.


Always a pre-production sample before mass production; Always final Inspection before shipment;

Yes, we can offer quality certification issued by our lab free of charge, or issued by third-party international inspection Organizations with extra charge, please contact us for confirmation.

Threenh Technology colorimeters provide a color deviation prompt function according to the Lab value, which can provide a reference for color matching. The handheld colorimeter can only indicate blacker, whiter, redder, greener, yellower or bluer, but it cannot provide accurate color formulas. Only with the help of a spectrophotometer and professional color matching software can fully realized automated color matching.
