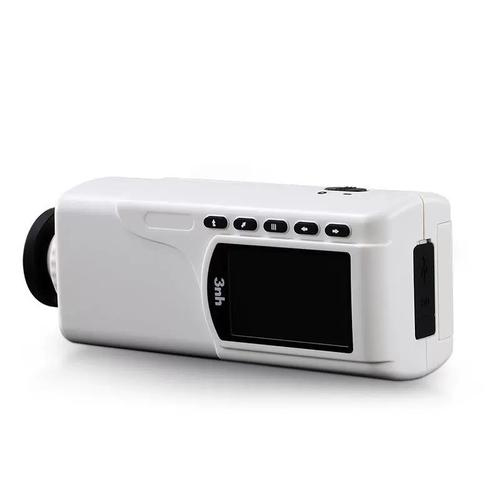

NR60CP Colorimeter-3NH

NR60CP Colorimeter

Perfect Partner for Color Measurement NR60CP

The NR60CP Colorimeter is a compact, handheld color measurement device designed for simplicity and portability; NR60CP microcomputer colorimeter is suitable for color detection and control in various occasions. It is an ideal choice for color management in garment factories, chemical factories, printing factories, automobile factories, hardware processing factories, mold factories, paint factories, etc.

Key Highlights

8°/ d optical geometry
Accurate spectra &Lab data , for color matching & delivery;
CIE LAB,LCh,XYZ, CIE RGB,CIE LUV Color Space
Φ8mmflat aperture; Φ4mmtip aperture
2.8-inch TFT screen for easy operation
Reliable repeatability (ΔEab ≤0.03) and inter-instrument agreement (ΔEab ≤0.4)
Large storage capacity, Apprx. 20,000 data;
On-site inspections, providing cost-effective color measurement solutions for entry-level applications

NR60CP Colorimeter Instructions Operating Manual NR60CP Colorimeter PDF

This NR60CP Instrument are Certified with

1 Years Warranty (Additional support period of 3 years)

Color Measurement Is So Easy

NR60CP cost-effective colorimeter has the advantages of high accuracy, powerful function and precise measurement which are warmly welcomed by customers.

Product Features

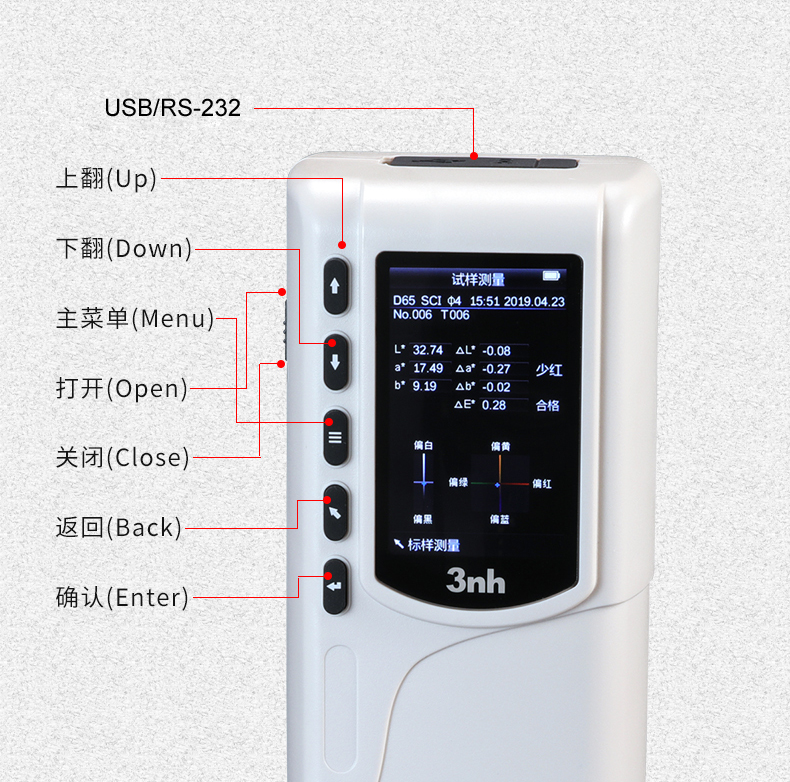

NR60CP Switchable 8mm and 4mm measuring apertures

1. Switchable 8mm and 4mm measuring apertures, easy to measure concave surface.

2. Higher measurement stability and accuracy, Delta E ab<0.03.

3. More color spaces, various color indexes, extensive applicability.

4. Double locating: illuminating locating and cross locating

5. Configured with high-capacity rechargeable Li-ion battery

6. Built-in white plate parameters and physical white calibration board, easy to operate;

7. New integrating sphere optical path design, more stable measurement;

8. Measurement data can pass national metrology authentication.

Application Industry

NR60CP spectrophotometer is widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories. It can precisely measure kinds of color indexes in various color spaces and easy to use with powerful functions. The instrument is equipped with high-end color management software which can connect to PC to achieve more extension functions.

Specification Parameters

Illuminating/Viewing Geometry: 8°/ d

Light Source: LED Light

Sensor: silicon photodiode array

Measuring aperture: Φ8mmflat aperture; Φ4mmtip aperture

Color Space：CI E L AB，XYZ，LCh，CI E RGB，CI E LUV

Color Difference Formula: ΔE* ab, ΔE( h) , ΔE* uv,ΔE* 94, ΔE*cmc ( 2: 1) , ΔE*cmc ( 1: 1) , ΔE* 00

Other Chromaticity Data: WI ( E313，CI E, AATCC，Hunt er )，YI ( D1925，313)，Color Fastness, Staining Fastness, J PC79，BFD( 1. 5: 1)，FMCI I

Observer: CI E 10°

Illuminant: D65，A，C，D50，F2，F6，F7，F8，F10，F11，F12

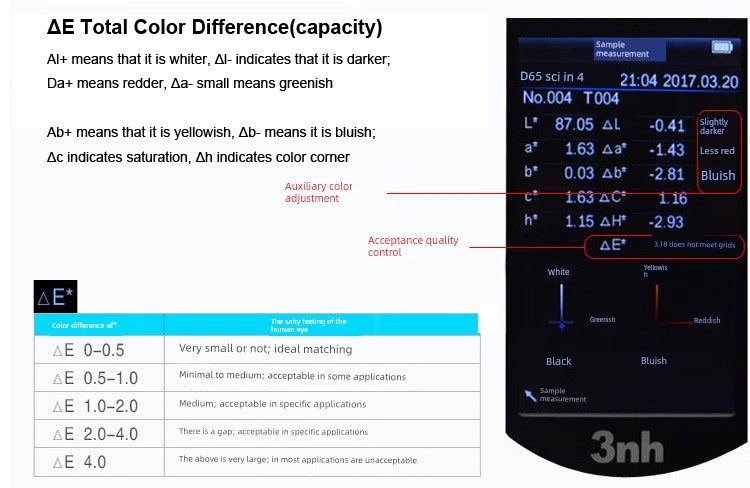

Display Data: Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset,

Measuring Time: 1.5s

Repeatability: ΔE* ab 0. 03 (Average of 30 measurements of standard white plate within 5s)

Errors between each instrument: within Delta E*ab 0.2

Dimension: 205*67*80mm

Weight: 500g

Battery: rechargeable lithium-ion battery 3. 7V @ 3200mAh

Lamp Life: 5 years, more than 1.6 million measurements

Screen: TFT 2.8 inch（16: 9）

Interface: USB/ RS- 232

Storage: 100 Standards, 20000 Samples

Operating Temperature:0~40℃（32~104°F）

Storage temperature:-20~50℃（-4~122°F）

PC software: CQCS3 software

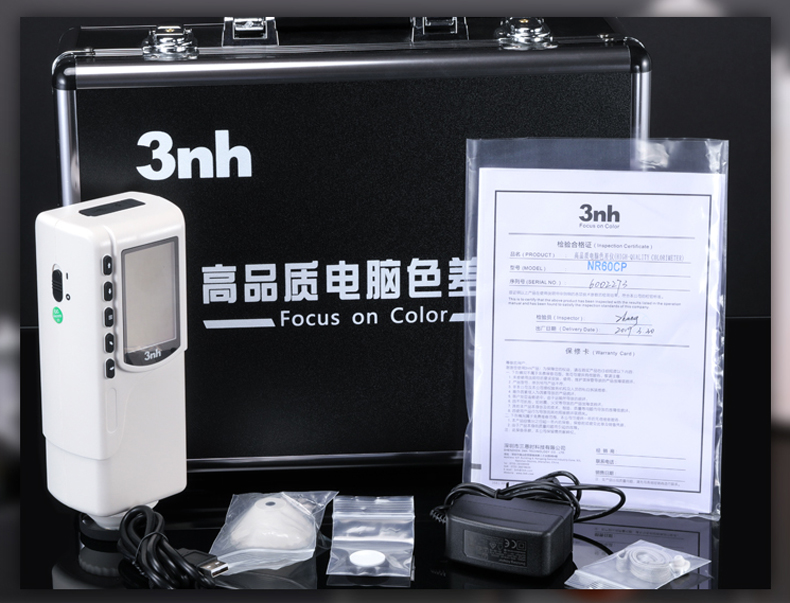

Optional accessory: miniature thermal printer, powder test box

12 Quality Inspection Processes

With 12 rigorous quality inspection processes in place, we ensure a high yield rate of up to 98% for batch processed precision parts.

DFM Analysis

Dimensional Tolerance

Material Testing

CNC Machining

FQC Detection

SPC / CPK

Problem Found

Problem Solving

OQC Detection

Surface Treatment

Full Inspection

Package

Our Valued Clients

FAQs About Colorimeter

Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.

You can choose a colorimters depending on the substrate you are measuring the color of, whether it is opaque, translucent or transparent. In short, you can consider the following factors for choosing the right 3NH colorimeter for your needs: Sample Opacity, Physical Form, Optical Properties needed, Measurement Methods required, Scales and Indices needed, Instrument Standards Conformance (ASTM/ISO/Other), Instrument Geometry, Instrument Performance, Location (laboratory, portability, in-process) and Sample Handling requirements.

By systematically addressing these factors, you can select a colorimeter that optimizes accuracy, efficiency, and value for your specific application.Learn more from our ultimate guide on colorimeter selection. If unsure, consult the 3NH manufacturer for personalized recommendations based on your sample and workflow.

Threenh colorimters are used across various industries to measure, analyze, and control color accuracy and consistency:

Food and Beverages: Monitor color quality in food products to meet industry standards.

Plastics and Polymers: Ensure color uniformity in plastic components (e.g., casings, buttons, panels) during manufacturing.

Chemicals and Pharmaceuticals,Cosmetics: Industry-specific accessories to attain the highest safety protocols, Ensure uniform color in pharmaceutical products for quality and brand recognition;Develop and match colors for cosmetics (e.g., lipsticks, creams, powders) and ensure batch consistency.

Textiles and Apparel: Monitor color consistency in fabrics during dyeing, printing, or finishing processes; ensure color consistency in fabrics and garments.

Building materials, Paints, and Coatings: Detect color deviations in coatings on metal, wood, or plastic surfaces (e.g., automotive paints, furniture finishes). Maintain color accuracy in building materials, paints, and coatings.

Printing and Packaging: Validate color accuracy in printed materials (e.g., brochures, labels, packaging) against design proofs, maintain consistency across different printing technologies.

By addressing color-related quality control challenges, 3NH colorimeters help industries maintain brand consistency, meet regulatory standards, and enhance customer satisfaction.

Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.

The repeatability is an important parameter for the accuracy of the colorimeter. Threenh Technology portable colorimeter for color measurements tandard deviation ΔE*ab is within 0.03 (Measurement condition: the average value of 30 measurements on the white board at an interval of 3s after calibration). Each colorimeter can pass the qualified inspection before leaving the factory to ensure it conforms to the standard of China Metrology Institute.
